FEATURES
- High Light Transmittance: Over 88% transmittance in 400-1100nm wavelength range
- UV Blocking: Over 99% UV rejection rate in 400-1100nm wavelength range
- Superior Weatherability: Withstands >1000 kWh/m² UV exposure and >120 kWh/m² damp-heat UV testing
APPLICATIONS
-
Foldable & Portable Lightweight ModulesResidential Balcony Lightweight ModulesAutomotive-integrated Lightweight ModulesCommercial & Industrial Distributed Lightweight Modules
STORAGE
The product has high storage stability and no other special storage requirements. The warranty period is one year under cool and dry storage conditions, and the generality of laminating process should be evaluated after the period.
SPECIFICATIONS
Item | Specifications | |
Product Structure | Air Coating | Air Layer:22.5μm, Weather-Resistance, UV Cut-Off |
Glue | / | |
Inner Layer | Inner Layer: 12μm, Insulation Property, Water Vapor Barrier Property, Great Bonding Performance with EVA | |
Product Type | HD-PF | |
Product Code | HD-PF-K | |

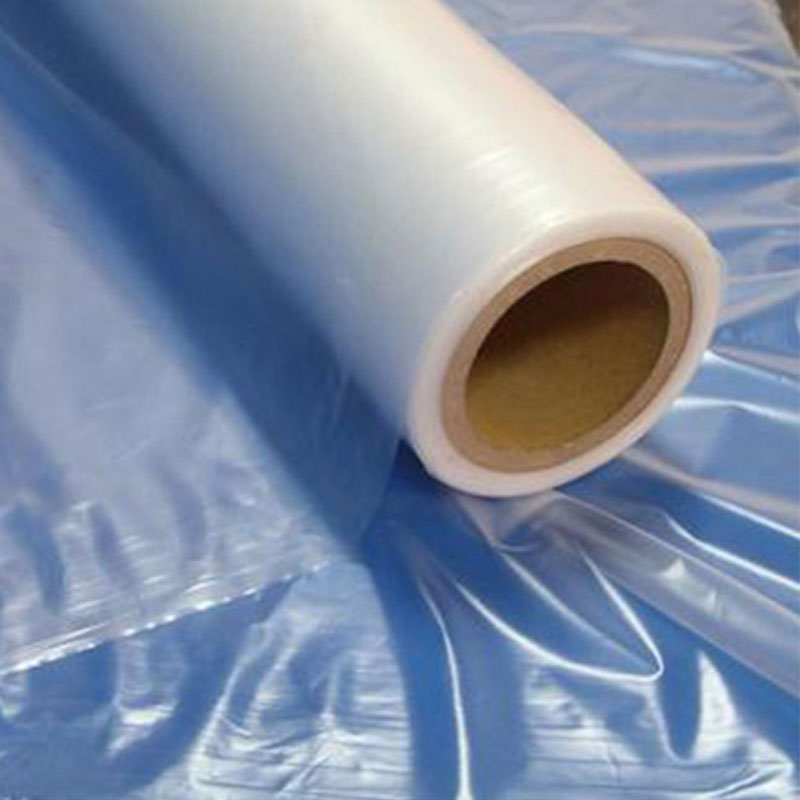

Product Name | Flexible front sheet for light-weight crystalline silicon photovoltaic(PV) modules | |
Thickness | Air Layer: 22.5±5μm Glue Layer: 6±2μm Inner Layer: 12μm±10% Total Thickness: 40.5μm±10% | |
Color | Transparent | |
CERTIFICATE
