PVDF

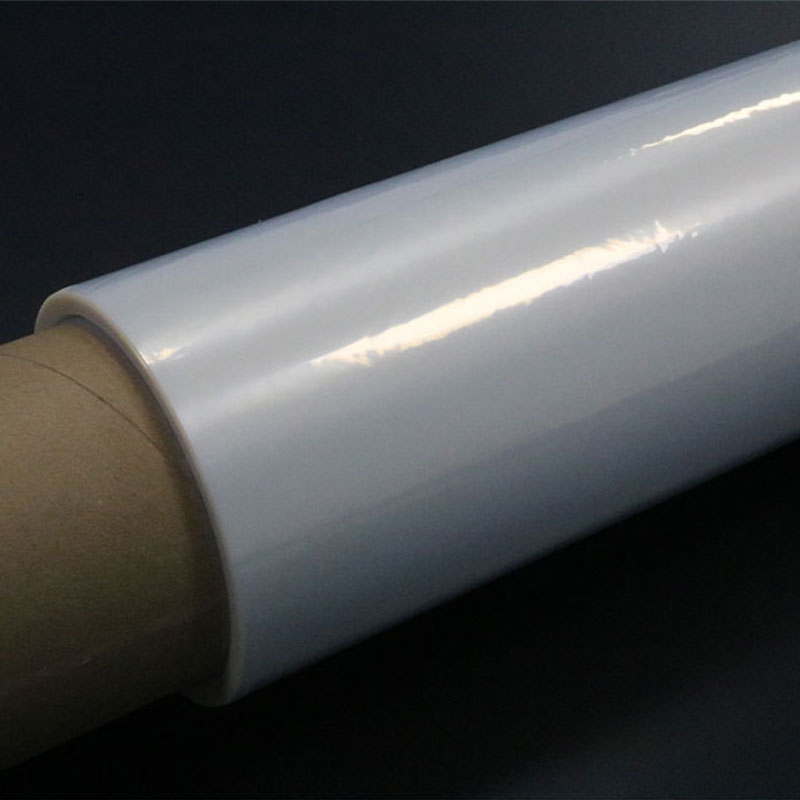

Product Name: PVDF Film
Product Series: Weather-Resistant Layer
Product Code: HOMA-K

FEATURES

Superior Weather Resistance: With over 40% fluorine content, maintains perfect condition without chalking or cracking after 800 kWh/m² UV exposure, ensuring long-term durability.
High Light Transmittance: Over 91% transmittance for enhanced power generation gains.
Excellent UV Blocking: Blocks over 99% of ultraviolet radiation.
Matte Surface Treatment: Low gloss level below 30 GU, effectively reducing light pollution.

APPLICATIONS

Foldable & Portable Lightweight Modules
Residential Balcony Lightweight Modules
Automotive-integrated Lightweight Modules
Commercial & Industrial Distributed Lightweight Modules

STORAGE

The product has high storage stability and no other special storage requirements. The warranty period is one year under cool and dry storage conditions.

SPECIFICATIONS

Test Item	Requirements	Range	Test Method
Thickness (μm)	20~50	-0/+2	Each volume in the width direction measure 5 points, and test environment temperature is 25℃.
Width (mm)	1000~1300	-0/+5	Each volume in the length direction measure 5 points, and test environment temperature is 25℃.
Length (m)	3000, 6000 or others	-0/+5	Samples are Measured with meter or tape in 25 degrees.

CERTIFICATE

Complete the form below and we will be in touch to assist you.

Test Item	Test Method	Unit	Measurement Value			Remark
Test Item	Test Method	Unit				Remark	HOMA-K-HT	HOMA-K-MS
UV Cut-Off (280-380nm)	GB/T 2410-2008	%	≥95	≥95	Test with UV Spectrophotometer
Transmittance (400-1100nm)	GB/T 2410-2008		%	≥85	Test with UV Spectrophotometer	≥85
Gloss	GB 8807-1988	Gu	≤30	≤30	Gloss Meter
Tensile Strength	GB/T 1040.3-2006	MPa	MD≥30 TD≥20	MD≥30 TD≥20	Dumbbell shaped sample, 100 mm/min rate of extension
Elongation at Break	GB/T 1040.3-2006	%	MD≥100 TD≥200	MD≥10 TD≥200	Dumbbell shaped sample, 100 mm/min rate of extension
Surface Tension Corona Surface	GB/T 14216	dyn/cm	≥48	≥48	Dyne Pen Test
Heat Shrinkage Rate	GB/T 12027	%	MD≤5.0 TD≤2.0	MD≤5.0 TD≤2.0	150℃ & 30min
PCT 96h Tensile Strength	GB/T 1040.3-2006	MPa	MD≥30 TD≥20	MD≥30 TD≥20	Dumbbell shaped sample, 100 mm/min rate of extension
PCT 96h Elongation at Break			%	MD≥100 TD≥10		MD≥100 TD≥10
-40℃ Tensile Strength			MPa	MD≥30 TD≥10		MD≥30 TD≥10
-40℃ TD Elongation at Break			%	TD≥10		TD≥10
PCT 96h	GB/T 13542.2-2021		Yellowing index △b≤3.0	Yellowing index △b≤3.0	The sample temperature is 65±5℃, and total radiationdose is 300KWh•m2, UVB accounts for 3%-10%.
UV300 kWh/㎡	IEC 61215-2021		Yellowing index △b≤3.0	Yellowing index △b≤3.0
DH2000h	IEC61215-2021		Yellowing index △b≤3.0	Yellowing index △b≤3.0	T: 85℃, RH: 85%, 2000h
TC400	IEC61215-2021		Yellowing index △b≤3.0	Yellowing index △b≤3.0			T: -40℃～85℃, 6h/period, 400 period
