FEATURES
- This product utilizes double-sided coating technology, delivering excellent heat and weather resistance.
- It features high reflectivity, enhancing the module’s power generation efficiency.
- Designed for modules with a system voltage of up to 1500V.
APPLICATIONS
Suitable for utility-scale PERC single-glass modules, it is also ideal for distributed and portable single-sided power generation applications, meeting the demands of long-term outdoor use.
STORAGE
The product has high storage stability and no other special storage requirements. The warranty period is one year under cool and dry storage conditions, and the generality of laminating process should be evaluated after the period.
SPECIFICATIONS
Item | Specifications | |
Product Structure | Air Coating | Air Coating: 10μm, Protect PET |
Middle Layer (PET) | Middle Layer: 288μm, Insulation Property, Water Vapor Barrier Property | |
Inner Coating | Inner Coating: 5μm, High Reflectivity, Great Bonding Performance with EVA | |
Product Type | HD-CPC | |
Product Code | HD-CPC / HD-CPC-B | |
Product Name | Insulating back sheet for crystalline silicon terrestrial photovoltaic (PV) modules | |
Thickness | Air Coating: 10±2μm Middle Layer: 288μm±5% Inner Coating: 5(-0, +2)μm Total Thickness: 303μm±5% | |
Color | White / Black | |

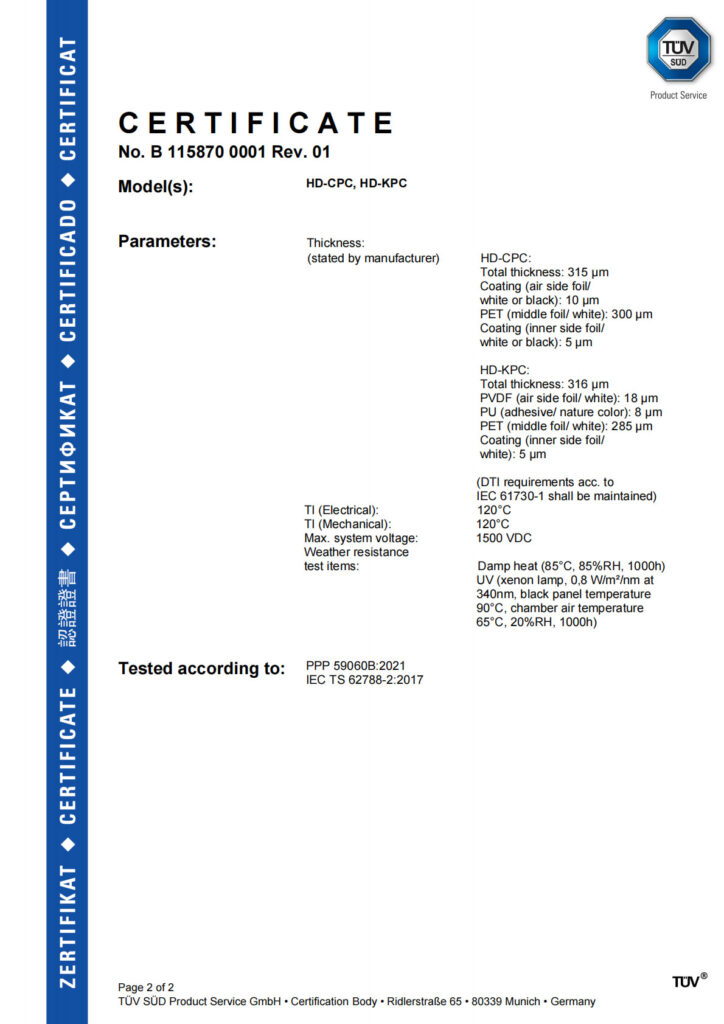

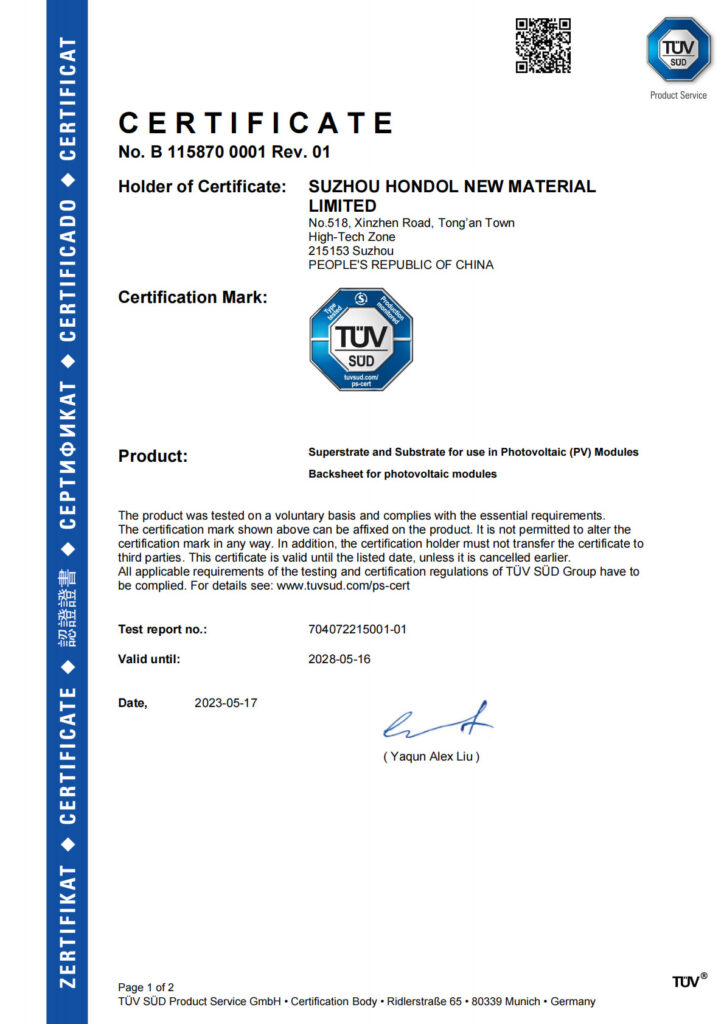

TUV CERTIFICATE
